Hammer Pile Driver Equipment/ Drop Hammer Machine for Drilling Pile Construction

کیفیت خوب Double Girder Overhead Cranes برای فروش
کیفیت خوب Double Girder Overhead Cranes برای فروش
چت IM آنلاین در حال حاضر

Hammer Pile Driver Equipment/ Drop Hammer Machine for Drilling Pile Construction

چین Hammer Pile Driver Equipment/ Drop Hammer Machine for Drilling Pile Construction تامین کننده

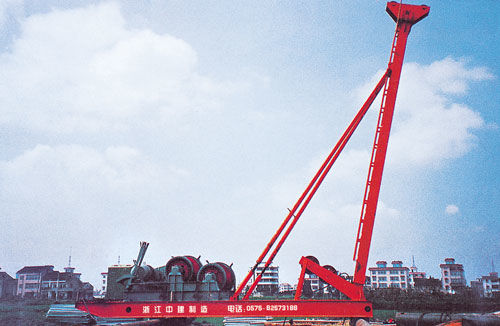

تصویر بزرگ :  Hammer Pile Driver Equipment/ Drop Hammer Machine for Drilling Pile Construction

جزئیات محصول:

Place of Origin: Zhejiang, China
نام تجاری: Shuangpeng
گواهی: ISO9001:2008
Model Number: ZJ1500

پرداخت:

Minimum Order Quantity: 1
قیمت: N/A
Packaging Details: Naked
Delivery Time: Within 2 months
Payment Terms: L/C, T/T
Supply Ability: 400 Sets per Year
Contact Now
توضیحات محصول جزئیات

Hammer Pile Driver Equipment/ Drop Hammer Machine for Drilling Pile Construction

Place of Origin:

Zhejiang, China

Brand Name:

Shuangpeng

Model Number:

ZJ1500

Certification:

ISO9001:2008

Max. Lifting Load

5t

Span

--

Max. Lifting Height

--

Crane Travelling Speed

--

Trolley Travelling Speed

--



Punching Pile Driver/Hammer Piling Machine is an important piling machine for foundation construction, the main structure including main winch, secondary winch, frame, hammer, mud pump and operation counters.

Punching Pile Driver is mainly used for drilling pile construction, It has obvious advantages particularly in the pebble, boulder stratum conditions. Its working principle is to lift striking hammer to free-fall down strike repeatedly, split and smash the mud, rock in the drill or push them into drill hole wall, suspend them in drilling mud, and then dig out them by cut tube devices.

Although the construction of Punching Pile Driver is simple, and works slowly, compared with other construction methods, the overall consumption is the lowest one, that is one of the reason why many construction companies have chosen it as main Drill Pile equipment Meanwhile, compact soil wall around hole stables the wall, improves the bearing capacity of pile foundation, all have certain effect.

Punching Pile Drivers are widely used in the following applications:

1.    Construction Site

General Drawing or Sketch or Draft Drawing

Hammer Pile Driver Equipment/ Drop Hammer Machine for Drilling Pile Construction

Technical Data

Technical Parameters of ZJ Series Punching Pile Driver

Parameter/Model

ZJ900

ZJ1200

ZJ1500

ZJ2000

Diameter of Punching (mm)

600-900

1000-1200

1200-1500

1500-2000

Depth of Punching(m)

80

80

80

80

Model of Main Winch(Ton)

JKL3

JKL5

JKL6

JKL8

Subsidiary Winch(Ton)

JK1.5

JK1.5

JK1.5

JK2

S.W.LRated pulling(KN)

30

50

60

80

Diameter of Main winch Wire Rope (mm)

17

21.5

24

28

Power of Main winch Motor(KW)

22

37

45

55

Punching Number (n/min)

5-6 n/min

Diameter of Hammer(mm)

φ600∼φ2200

Weight of Punching Hammer

2ton

3ton

4ton

6ton

Weight of Complete Machine

5500kg

6000kg

6500kg

9500kg

Overall Dimension(mm)

6000×2200×6300

7000×2000×7000

7000×2100×7200

7200×2000×7200
